Guide to ceiling installation
Before installation, make sure the electrical circuit is turned off. We recommend that all electrical products be installed by a qualified professional. For all models with unfinished fittings, we recommend wearing gloves during installation to avoid fingerprints.
Recommended bulb
E27 Max 25W, 2700K
What you'll need
- 1 x Drill/driver
- 3 x Rawlplug
- 3 x Screw
- 1 x Crown bulb
Step 1
Begin by turning off the power at the main circuit breaker.

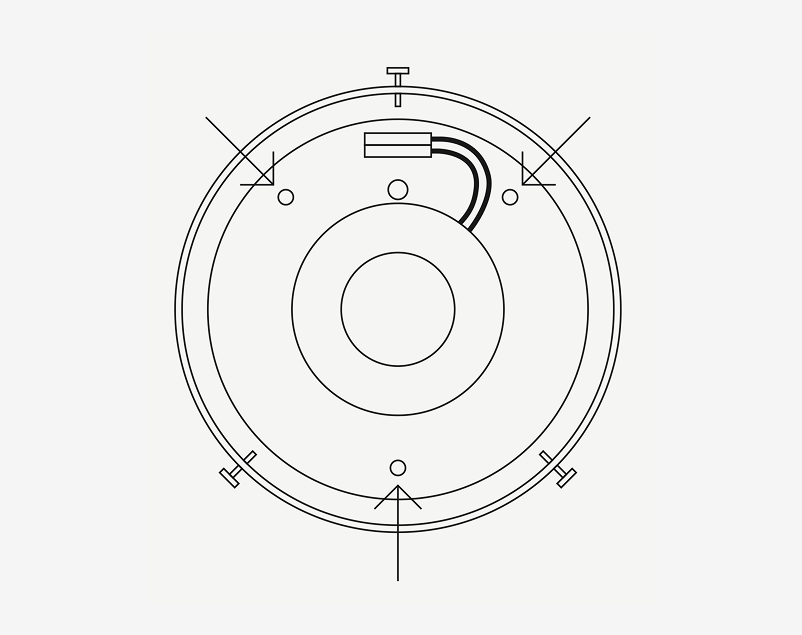

Step 2
Hold the bracket against the surface and use your pencil to mark the three drilling points. Drill the holes and insert the rawlplugs.

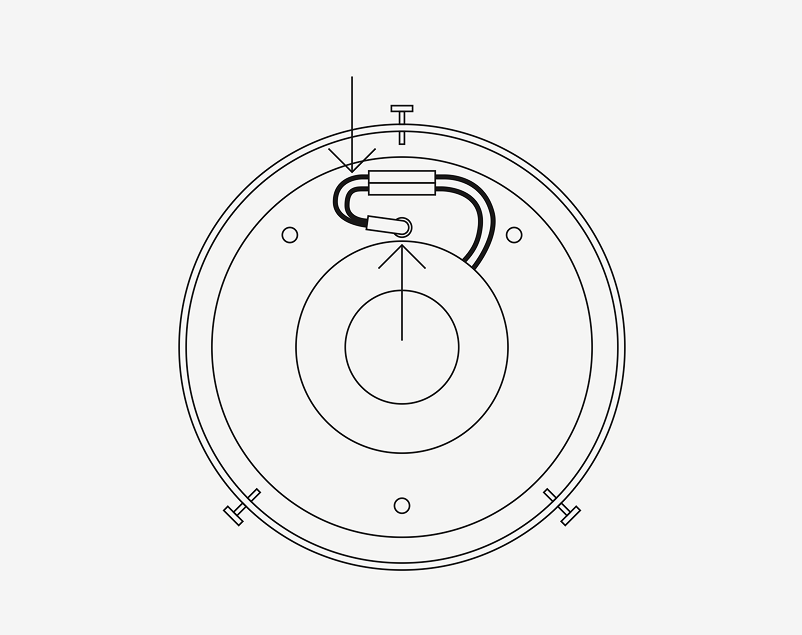

Step 3
Feed a wire through the free hole and connect it to the socket. Insert the screws and mount it on the surface with a combination drill.

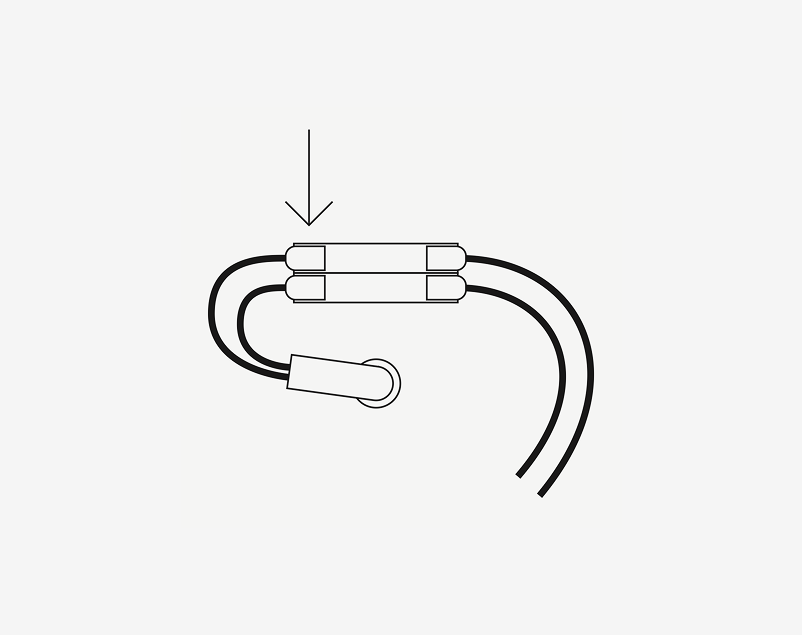

Step 4
Install the glass panel by locking the screws in place. Tighten them gently until they meet the glass. Avoid using force—the glass should simply rest against the screws.

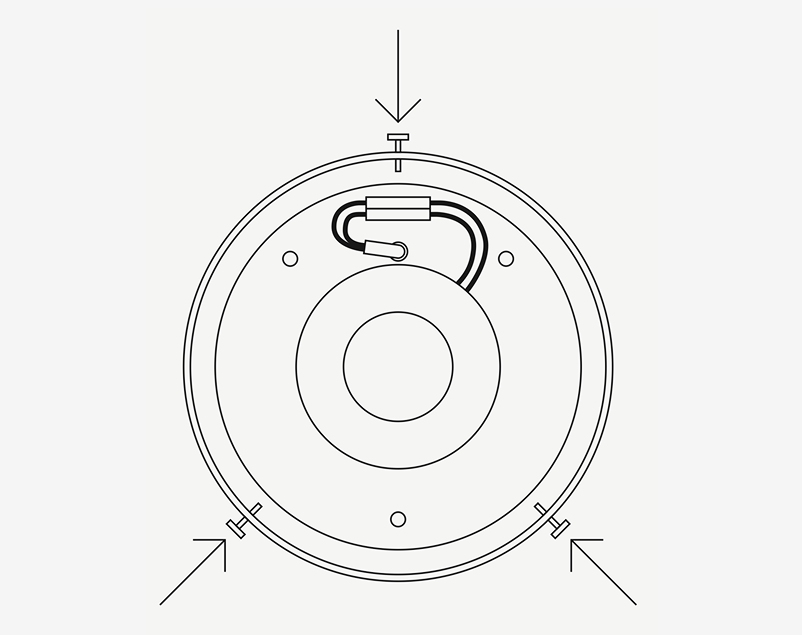

Step 5
Connect the cable to your circuit installation.

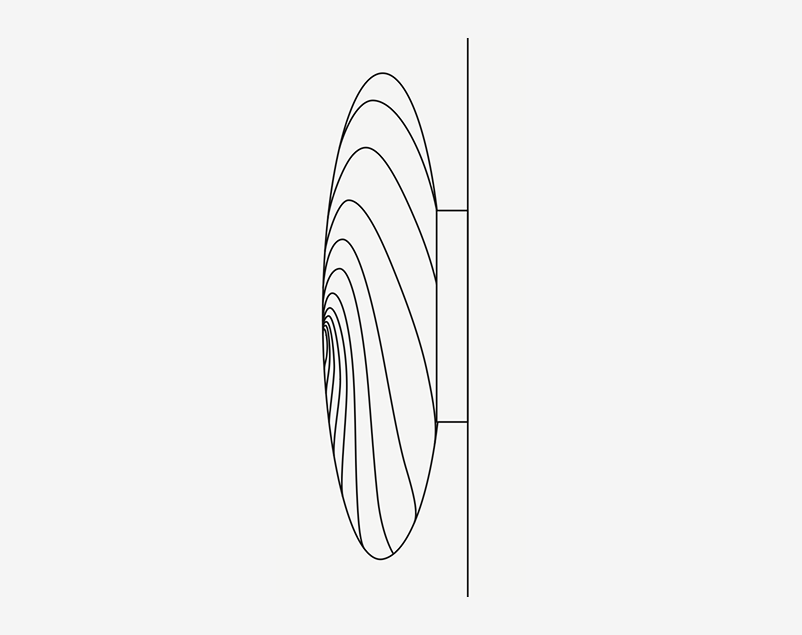

Step 6
Turn the power back on and switch the lamp on.
